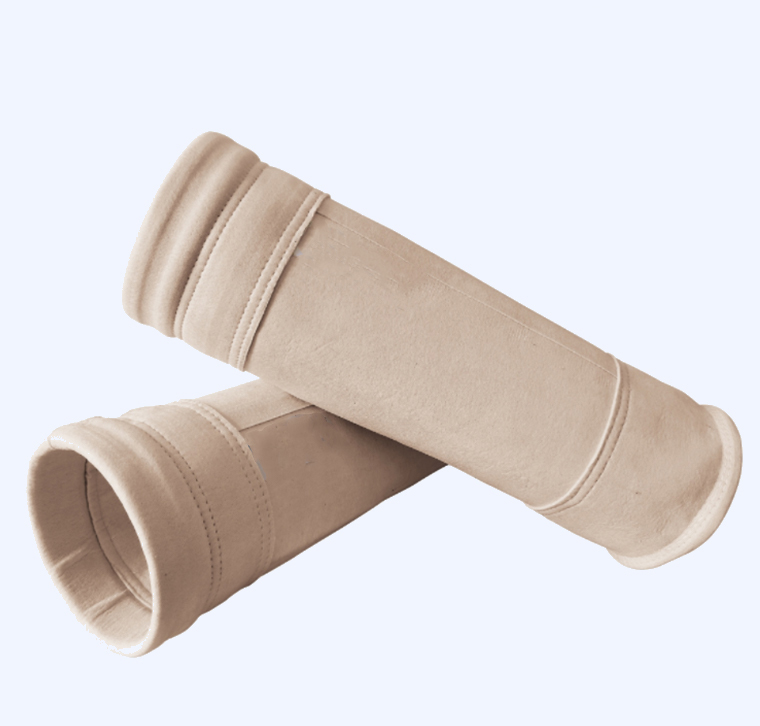

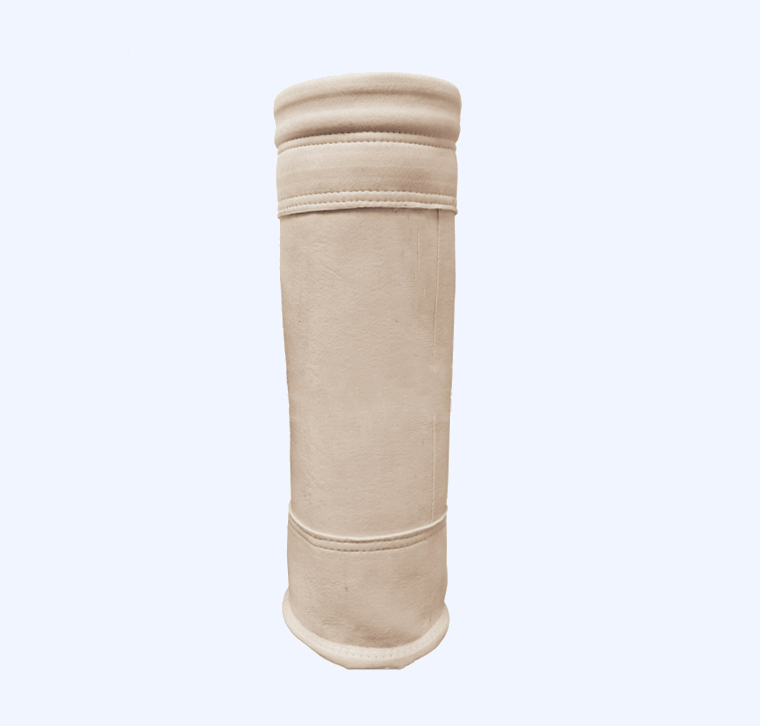

PPS polyphenylene sulfide needle felt filter bag

  • Product :

    PPS polyphenylene sulfide needle felt filter bag

  • Application :

    Applied for dust collection of cement production line with capacity from 1000tpd to 12000tpd

  • Working condition :

    Middle temperature

  • Apply temperature :

    ≤190℃,peak value:230℃

  • Dust content inlet :

    ≤1300 g/m³

  • Performance :

    ≤10 mg/Nm³

  • Warranty :

    3 years

  • Contract :

    EP/EPC

  • Delivery :

    Sea/air/inland transportation

  • Payment terms :

    T/T, L/C or others

Product Selection

Technical Data

Product Features

  • High filtration precision, high temperature resistance, folding resistance, corrosion resistance and good waterproof performance

    Superfine PPS (polyphenylene sulfide) staple fiber and PTFE (polytetrafluoroethylene) fiber are selected for blending on the dust facing surface, which will not shrink under high temperature, will not affect the gap between the filter bag and the bag cage and ensure the dust filtration performance.

  • High temperature thermal membrane coating technology is adopted to ensure high filtration precision

    The filter material coated with the high temperature permeable membrane has small pore size and high porosity which can improve the filtration accuracy of the filter material. The primary dust layer is relatively thin, which is easier to remove dust, and the dust stripping rate is high.

  • Good corrosion resistance, water and oil repellency and anti-condensation

    PTFE (polytetrafluoroethylene) will form a dense protective film on the fiber surface, which improves the oxidation resistance and corrosion resistance of the filter material. Besides it also has good water and oil repellency and anti-condensation function.

  • Automatic cutting can ensure no deviation in size and three chain stitches guarantee that there will be no opening due to blowing

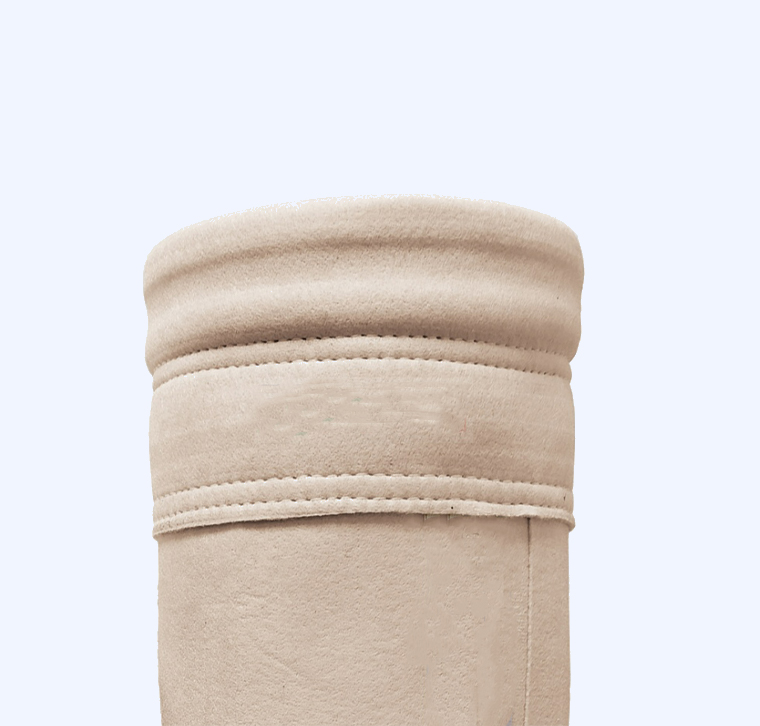

    The upper and lower pieces of the stitches on the filter bag are flat and free of folds. The bag mouth and the interface at the bottom of the bag are folded evenly so there will be no gap after being installed on the tubeplate.


Erection Procedure

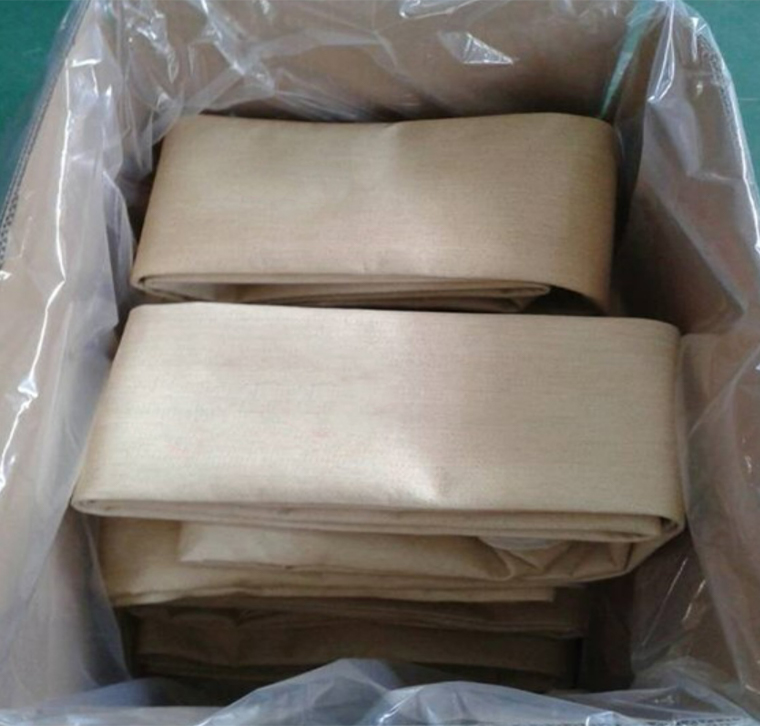

Transporting the whole carton of filter bags into the air purification chamber through the manhole door. The filter bag must be transported in the whole carton otherwise the filter bag is easy to be scratched.
The whole carton of filter bags shall be stacked neatly in the air purification chamber.
Distributing filter bag installation protective sleeves to filter bag installation workers.
Putting the filter bag protection sleeves into the tubeplate holes.
Inserting all the filter bags into the tubeplate holes and taking out the protective sleeves.
Bending the elastic ring of the filter bag with both hands. The groove of the outer bag mouth is aligned with the edge of the tubeplate hole. The bag ring is tightly attached to the tubeplate in the whole circle and evenly tensioned.
Usually, a "snap" sound can be heard, which means that the opening of the filter bag has been clamped with the tubeplate hole. If it is not clamped, press it by hand or gently tap the periphery with a rubber hammer until it is tensioned.
Please notice to install backward from the tail end of the jet pipe to the manhole door, which can avoid workers from stepping on the elastic circlip of the filter bag.

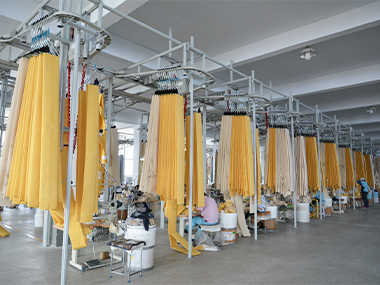

Manufacturing Process
