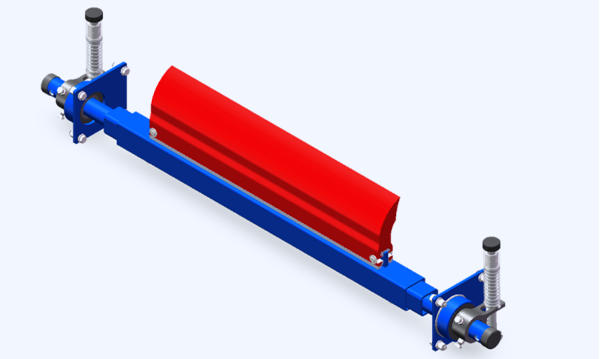

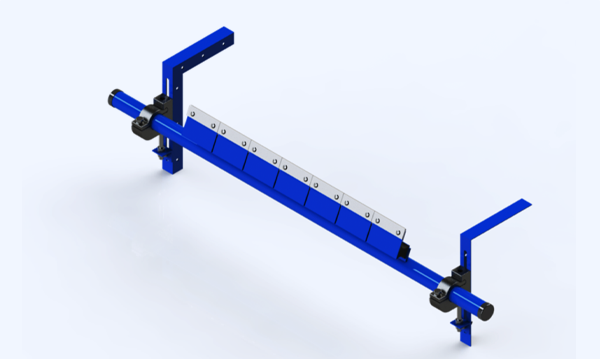

The primary cleaner blade is high quality polyurethane which is good in cleaning and abrasive proof, the scraper is with a warning line for scraper abrasive so can make a timely exchange.
High strength scraper support
Balance between resistance and cleaning, reducing the damage to the belt
External tensile device ensuring a constant contact with belt
Fast and convenient installation and replacement
Suitable for belt width 650mm-2200mm
Blade selection according to requirements of installation
Scraper head with alloy and PU material selection
Long Life time and lower maintenance
Shock resistant support design
Constant contact with belt with adjustable tensile
Good cleaning and protection to belt and joint

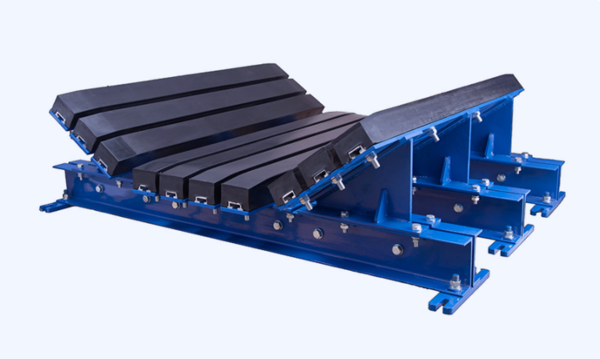

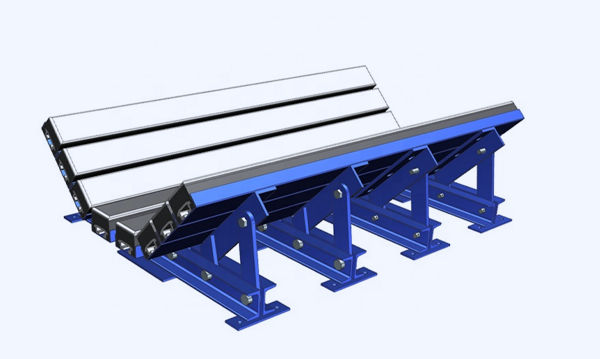

1. Impact bed bar is comprised of polyester on the surface and rubber below, and the rubber has good performance in absolving the shock and protecting the rubber belt.
2. Impact bar support frame is high strength steel and the curve design allows a higher impact shock.
3. The cross bean effectively transmits the shock and allows a bigger impact space from the middle.
4. Quick and convenient maintenance by replacing the impact bed bar.
